MJ30系列所有型號
| 零件號 | 額定電壓 | 額定電流（安培） | 兼容保險絲座 | 固定中心 |
| 20MJ30-8 | 415Vac | 20 | JW3 | 82mm |
| 25MJ30-8 | 415Vac | 25 | JW3 | 82mm |
| 32MJ30-8 | 415Vac | 32 | JW3 | 82mm |
| 40MJ30-8 | 415Vac | 40 | JW3 | 82mm |
| 50MJ30-8 | 415Vac | 50 | JW3 | 82mm |
| 63MJ30-8 | 415Vac | 63 | JW3 | 82mm |
| 80MJ30-7 | 415Vac | 80 | JW3 | 82mm |
| 100MJ30-7 | 415Vac | 100 | JW3 | 82mm |
| 125MJ30-7 | 415Vac | 125 | JW3 | 82mm |
| 160MJ30-7 | 415Vac | 160 | JW3 | 82mm |
| 200MJ30-7 | 415Vac | 200 | JW3 | 82mm |
| 250MJ30-7 | 415Vac | 250 | JW3 | 82mm |
| 315MJ30-7 | 415Vac | 315 | JW3 | 82mm |
一般規范
| 產品名稱 | Eaton Bussmann系列低壓英制標準保險絲 |
| Catolog編號 | 100MJ30-7 |
| 額定電壓 | 415V |
| 額定電流 | 100A |
| 數據表 |
|
| 產品長度/深度 | 110 mm |
| 產品高度 | 31mm |
| 產品寬度 | 31 mm |
| 重量 | 155.4g |
| 合規性 | CE認證，符合RoHS |
| 保險絲類型 | MJ30 |
| 保險絲形狀 | 雙槽螺栓標簽 |
| 結構尺寸 | J |

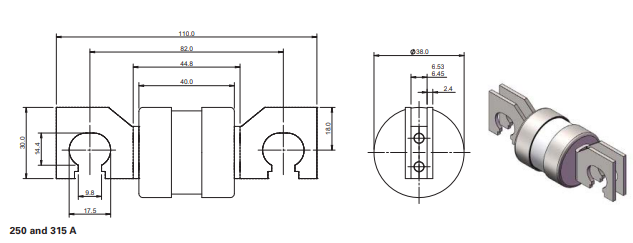

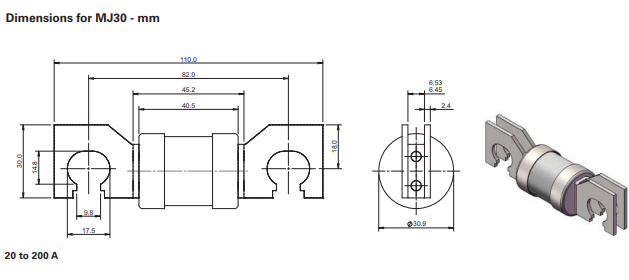

尺寸
